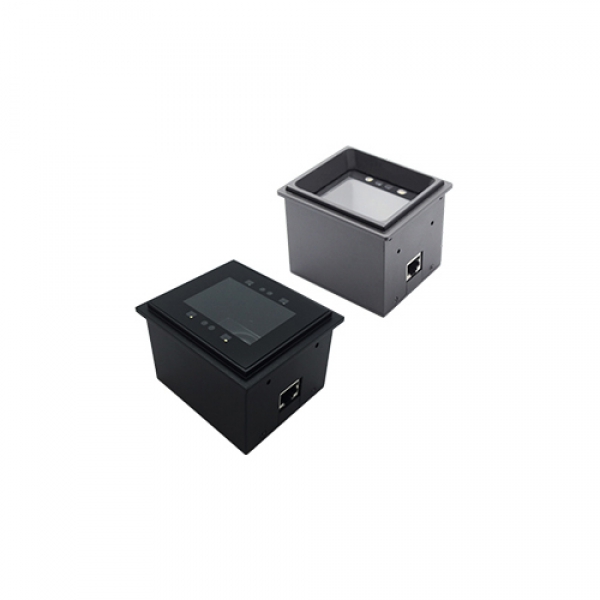

NLS-FM30

Type ：Fixed Mount Scanner
Symbologies ：1D/2D
Reading Mode ：CMOS
Interface ：RS232/USB
Category ：Good for on-screen barcode

Catégorie : Accessoires

Disponibilité : En Stock

Fabricant : Newland

Performance	Image Sensor	752*480 CMOS
Illumination	White LED
Symbologies	2D: PDF417, Data Matrix, QR Code, Chinese Sensible Code. 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128 (FNC1, FNC2, FNC3), Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey
Resolution*	≥5mil
Scan Mode	Sense mode, Continuous mode
Scan Angle**	Pitch: ±40°, Roll: 360°, Skew: ±40°
Scan Window	31.5mm×46.5mm	38.3mm×60.4mm
Field of View	Horizontal: 75°, Vertical: 50°
Min. Symbol Contrast*	25%
Interface	RS-232, USB
Physical/ Electric	Dimensions	78.7(W)×67.7(D)×53(H)mm (max.)	78.7(W)×67.7(D)×62.5(H)mm (max.)
Weight	173g	195g
Notification	Beep
Rated Power Consumption	534mW (typical)
Operating Voltage	5VDC±5%
Current@5VDC	Operating Current: 108mA (typical), 114mA (max.)
Environmental	Operating Temperature	-20℃ to 60℃ (-4°F to 140°F)
Storage Temperature	-40℃ to 70℃(-4°F to 158°F)
Humidity	5% to 95% (non-condensing)
ESD	±8 KV (air discharge); ±4 KV (direct discharge)
Certifications	FCC Part15 Class B, CE EMC Class B
Accessories	Cable	USB cable: Used to connect the scanner to a host device. RS-232 cable: Used to connect the scanner to a host device.
Power Adapter	DC5V power adapter to provide power for the scanner with RS-232 cable.
